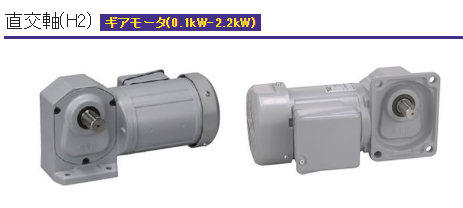

NISSEI GEAR MOTOR 日精减速机H2F22R30-MM02TNNTB2 UL/CE/CCC认证
苏州上野机电设备有限公司销售电话：178-9504-6997 刘经理 微信同号
基本情報 | 製品名 | |
|---|---|---|
生産情報/代替品情報 | 現行製品 | |
シリーズ | インダクションギアモータ | |
標準価格 | - | |
標準納期[工場出荷日] | - | |
性能値 | 出力軸回転速度 ※モータ同期回転速度を基準 | 50r/min / 50Hz 60r/min / 60Hz |
出力軸許容トルク | 34 N・m(3.5 kgf・m) / 50Hz 28 N・m(2.9 kgf・m) / 60Hz | |
出力軸許容 O.H.L | 1370N(140kgf) | |
許容慣性モーメント（許容GD²） [モータ軸換算値] | 0.001kg・㎡(0.004kgf・㎡) | |
減速機仕様 | 出力軸タイプ／取付 | 直交軸／フランジ取付 |
枠番および出力軸径 | 22 mm | |
減速比 (実減速比) | 1/30 (1/30) | |
出力軸材質 | 炭素鋼 | |
モータ仕様 | モータ種類 | 標準モータ |
モータ容量 | 0.2kW(1/4HP) | |
相数 | 三相 | |
電圧/周波数/ 定格電流/定格回転速度 | 200V / 50Hz / 1.1A / 1400r/min 200V / 60Hz / 1A / 1680r/min 220V / 60Hz / 1A / 1700r/min | |
コンデンサ | - | |
保護構造 | IP44 | |
ブレーキ仕様 | ブレーキ方式 | 無励磁作動形(スプリングクローズ) |
ブレーキ電圧DC | 90V | |
対応整流器 | A200-D90-UL | |
ブレーキ容量[at75℃] | 11W | |
ブレーキ電流[at75℃] | 0.09A | |
静摩擦トルク | 1.96 N・m(0.20 kgf・m) | |
動摩擦トルク[定格トルク] | 1.57 N・m(0.16 kgf・m) | |
ブレーキ許容頻度 | 10回/分 | |
規格 | 対応規格 | UL・CE・CCC |
海外型式 | 海外型式置換え | |
質量・梱包 | 概略質量 | 9 kg |
梱包形状 | 段ボール 417×283×215 |
苏州上野机电设备有限公司销售型号如下：
| H2F22R30-WM01TNNEN | 苏州上野 | H2F22R30-WM01TNNEN |
| H2F22R30-WM01TNNEV2 | 日精代理商 | H2F22R30-WM01TNNEV2 |
| H2F22R30-WM01TWNEN | GTR | H2F22R30-WM01TWNEN |
| H2F22R30-WM01TWNEV4 | NISSEI | H2F22R30-WM01TWNEV4 |
| H2F22R30-WM02TNNEN | 苏州上野 | H2F22R30-WM02TNNEN |
| H2F22R30-WM02TNNEV2 | 日精代理商 | H2F22R30-WM02TNNEV2 |
| H2F22R30-WM02TWNEN | GTR | H2F22R30-WM02TWNEN |
| H2F22R30-WM02TWNEV4 | NISSEI | H2F22R30-WM02TWNEV4 |
| H2F22R30-MM01TANTN | 苏州上野 | H2F22R30-MM01TANTN |
| H2F22R30-MM01TANTB2 | 日精代理商 | H2F22R30-MM01TANTB2 |
| H2F22R30-MM01TANTB4 | GTR | H2F22R30-MM01TANTB4 |
| H2F22R30-MM02TANTN | NISSEI | H2F22R30-MM02TANTN |
| H2F22R30-MM02TANTB2 | 苏州上野 | H2F22R30-MM02TANTB2 |
| H2F22R30-MM02TANTB4 | 日精代理商 | H2F22R30-MM02TANTB4 |
| H2F22R30-WM01TKNEN | GTR | H2F22R30-WM01TKNEN |
| H2F22R30-WM01TKNEV2 | NISSEI | H2F22R30-WM01TKNEV2 |
| H2F22R30-WM01TKNEV4 | 苏州上野 | H2F22R30-WM01TKNEV4 |
| H2F22R30-WM02TKNEN | 日精代理商 | H2F22R30-WM02TKNEN |
| H2F22R30-WM02TKNEV2 | GTR | H2F22R30-WM02TKNEV2 |
| H2F22R30-WM02TKNEV4 | NISSEI | H2F22R30-WM02TKNEV4 |
| H2F22R30-MM01TCNTN | 苏州上野 | H2F22R30-MM01TCNTN |
| H2F22R30-MM01TCNTB2 | 日精代理商 | H2F22R30-MM01TCNTB2 |
| H2F22R30-MM01TCNTB4 | GTR | H2F22R30-MM01TCNTB4 |
| H2F22R30-MM02TCNTN | NISSEI | H2F22R30-MM02TCNTN |
| H2F22R30-MM02TCNTB2 | 苏州上野 | H2F22R30-MM02TCNTB2 |
| H2F22R30-MM02TCNTB4 | 日精代理商 | H2F22R30-MM02TCNTB4 |
| H2F22R30-WM01TANEN | GTR | H2F22R30-WM01TANEN |
| H2F22R30-WM01TANEV2 | NISSEI | H2F22R30-WM01TANEV2 |
| H2F22R30-WM01TANEV4 | 苏州上野 | H2F22R30-WM01TANEV4 |
| H2F22R30-WM02TANEN | 日精代理商 | H2F22R30-WM02TANEN |
| H2F22R30-WM02TANEV2 | GTR | H2F22R30-WM02TANEV2 |
| H2F22R30-WM02TANEV4 | NISSEI | H2F22R30-WM02TANEV4 |
| H2F22R30-WM01TCNEN | 苏州上野 | H2F22R30-WM01TCNEN |
| H2F22R30-WM01TCNEV2 | 日精代理商 | H2F22R30-WM01TCNEV2 |
| H2F22R30-WM01TCNEV4 | GTR | H2F22R30-WM01TCNEV4 |
| H2F22R30-WM02TCNEN | NISSEI | H2F22R30-WM02TCNEN |
| H2F22R30-WM02TCNEV2 | 苏州上野 | H2F22R30-WM02TCNEV2 |
| H2F22R30-WM02TCNEV4 | 日精代理商 | H2F22R30-WM02TCNEV4 |
| H2F22R30-MM01TENTN | GTR | H2F22R30-MM01TENTN |
| H2F22R30-MM01TENTB4 | NISSEI | H2F22R30-MM01TENTB4 |
| H2F22R30-MM02TENTN | 苏州上野 | H2F22R30-MM02TENTN |
| H2F22R30-MM02TENTB4 | 日精代理商 | H2F22R30-MM02TENTB4 |
| H2F22R30-WM01TENEN | GTR | H2F22R30-WM01TENEN |
| H2F22R30-WM01TENEV4 | NISSEI | H2F22R30-WM01TENEV4 |
| H2F22R30-WM02TENEN | 苏州上野 | H2F22R30-WM02TENEN |
| H2F22R30-WM02TENEV4 | 日精代理商 | H2F22R30-WM02TENEV4 |
| H2F22R30-MM01TMATN | GTR | H2F22R30-MM01TMATN |
| H2F22R30-MM01TMATB2 | NISSEI | H2F22R30-MM01TMATB2 |
| H2F22R30-MM02TMATN | 苏州上野 | H2F22R30-MM02TMATN |
| H2F22R30-MM02TMATB2 | 日精代理商 | H2F22R30-MM02TMATB2 |
| H2F22R30-WM01TMAEN | GTR | H2F22R30-WM01TMAEN |
| H2F22R30-WM01TMAEV2 | NISSEI | H2F22R30-WM01TMAEV2 |
| H2F22R30-WM02TMAEN | 苏州上野 | H2F22R30-WM02TMAEN |
| H2F22R30-WM02TMAEV2 | 日精代理商 | H2F22R30-WM02TMAEV2 |
| H2F22R30-MM01TNNTN | GTR | H2F22R30-MM01TNNTN |
| H2F22R30-MM01TNNTB2 | NISSEI | H2F22R30-MM01TNNTB2 |
| H2F22R30-MM01TWNTN | 苏州上野 | H2F22R30-MM01TWNTN |
| H2F22R30-MM01TWNTB4 | 日精代理商 | H2F22R30-MM01TWNTB4 |
| H2F22R30-MM02TNNTN | GTR | H2F22R30-MM02TNNTN |
| H2F22R30-MM02TNNTB2 | NISSEI | H2F22R30-MM02TNNTB2 |
| H2F22R30-MM02TWNTN | 苏州上野 | H2F22R30-MM02TWNTN |
| H2F22R30-MM02TWNTB4 | 日精代理商 | H2F22R30-MM02TWNTB4 |
| H2F22R30-MM01TKNTN | GTR | H2F22R30-MM01TKNTN |
| H2F22R30-MM01TKNTB2 | NISSEI | H2F22R30-MM01TKNTB2 |
| H2F22R30-MM01TKNTB4 | 苏州上野 | H2F22R30-MM01TKNTB4 |
| H2F22R30-MM02TKNTN | 日精代理商 | H2F22R30-MM02TKNTN |
| H2F22R30-MM02TKNTB2 | GTR | H2F22R30-MM02TKNTB2 |
| H2F22R30-MM02TKNTB4 | NISSEI | H2F22R30-MM02TKNTB4 |
| H2F22R30-MM01TWJNN | 苏州上野 | H2F22R30-MM01TWJNN |
| H2F22R30-MM01TWJNB4 | 日精代理商 | H2F22R30-MM01TWJNB4 |
| H2F22R30-MM02TWJNN | GTR | H2F22R30-MM02TWJNN |
| H2F22R30-MM02TWJNB4 | NISSEI | H2F22R30-MM02TWJNB4 |
| H2F22R30-MM01TNNNN | 苏州上野 | H2F22R30-MM01TNNNN |
| H2F22R30-MM01TNNNB2 | 日精代理商 | H2F22R30-MM01TNNNB2 |
| H2F22R30-MM02TNNNN | GTR | H2F22R30-MM02TNNNN |
| H2F22R30-MM02TNNNB2 | NISSEI | H2F22R30-MM02TNNNB2 |
| H2F22R30-EM02TNJNN | 苏州上野 | H2F22R30-EM02TNJNN |
| H2F22R30-EM02TNJTN | 日精代理商 | H2F22R30-EM02TNJTN |
| H2F22R30-EM02TWJTN | GTR | H2F22R30-EM02TWJTN |
| H2F22R30-MM01TWJNJ4 | NISSEI | H2F22R30-MM01TWJNJ4 |
| H2F22R30-MM02TWJNJ4 | 苏州上野 | H2F22R30-MM02TWJNJ4 |
| H2F22R30-MM01TNNNJ2 | 日精代理商 | H2F22R30-MM01TNNNJ2 |
| H2F22R30-MM01TNNTJ2 | GTR | H2F22R30-MM01TNNTJ2 |
| H2F22R30-MM01TWNTJ4 | NISSEI | H2F22R30-MM01TWNTJ4 |
| H2F22R30-MM02TNNNJ2 | 苏州上野 | H2F22R30-MM02TNNNJ2 |
| H2F22R30-MM02TNNTJ2 | 日精代理商 | H2F22R30-MM02TNNTJ2 |
| H2F22R30-MM02TWNTJ4 | GTR | H2F22R30-MM02TWNTJ4 |
| H2F22R30-MM01TKNTJ2 | NISSEI | H2F22R30-MM01TKNTJ2 |
| H2F22R30-MM01TKNTJ4 | 苏州上野 | H2F22R30-MM01TKNTJ4 |
| H2F22R30-MM02TKNTJ2 | 日精代理商 | H2F22R30-MM02TKNTJ2 |
| H2F22R30-MM02TKNTJ4 | GTR | H2F22R30-MM02TKNTJ4 |
| H2F22R30-MM01TANTJ2 | NISSEI | H2F22R30-MM01TANTJ2 |
| H2F22R30-MM01TANTJ4 | 苏州上野 | H2F22R30-MM01TANTJ4 |
| H2F22R30-MM02TANTJ2 | 日精代理商 | H2F22R30-MM02TANTJ2 |
| H2F22R30-MM02TANTJ4 | GTR | H2F22R30-MM02TANTJ4 |
| H2F22R30-MM01TCNTJ2 | NISSEI | H2F22R30-MM01TCNTJ2 |
| H2F22R30-MM01TCNTJ4 | 苏州上野 | H2F22R30-MM01TCNTJ4 |
| H2F22R30-MM02TCNTJ2 | 日精代理商 | H2F22R30-MM02TCNTJ2 |
| H2F22R30-MM02TCNTJ4 | GTR | H2F22R30-MM02TCNTJ4 |
| H2F22R30-MM01TENTJ4 | NISSEI | H2F22R30-MM01TENTJ4 |
| H2F22R30-MM02TENTJ4 | 苏州上野 | H2F22R30-MM02TENTJ4 |
| H2F22R30-MM01TMATJ2 | 日精代理商 | H2F22R30-MM01TMATJ2 |
| H2F22R30-MM02TMATJ2 | GTR | H2F22R30-MM02TMATJ2 |
| H2F22R30-MM02CNJAN | NISSEI | H2F22R30-MM02CNJAN |
| H2F22R30-MM02CNJAB2 | 苏州上野 | H2F22R30-MM02CNJAB2 |
| H2F22R30-MM01SNJAN | 日精代理商 | H2F22R30-MM01SNJAN |
| H2F22R30-MM01SWJAN | GTR | H2F22R30-MM01SWJAN |
| H2F22R30-MM01SNJAB2 | NISSEI | H2F22R30-MM01SNJAB2 |
| H2F22R30-MM01SWJAB2 | 苏州上野 | H2F22R30-MM01SWJAB2 |
| H2F22R30-MM02CWJAN | 日精代理商 | H2F22R30-MM02CWJAN |
| H2F22R30-MM02CWJAB2 | GTR | H2F22R30-MM02CWJAB2 |
| H2F22R30-MM02CNJNN | NISSEI | H2F22R30-MM02CNJNN |
| H2F22R30-MM02CNJNB2 | 苏州上野 | H2F22R30-MM02CNJNB2 |
| H2F22R30-MM01SNJNN | 日精代理商 | H2F22R30-MM01SNJNN |
| H2F22R30-MM01SWJNN | GTR | H2F22R30-MM01SWJNN |
| H2F22R30-MM01SNJNB2 | NISSEI | H2F22R30-MM01SNJNB2 |
| H2F22R30-MM01SWJNB2 | 苏州上野 | H2F22R30-MM01SWJNB2 |
| H2F22R30-MM02CWJNN | 日精代理商 | H2F22R30-MM02CWJNN |
| H2F22R30-MM02CWJNB2 | GTR | H2F22R30-MM02CWJNB2 |
