日本原装进口仓敷化工橡胶弹簧型号：RA-30-26H

发布时间：2021-08-09 13:29:42 点击次数：440

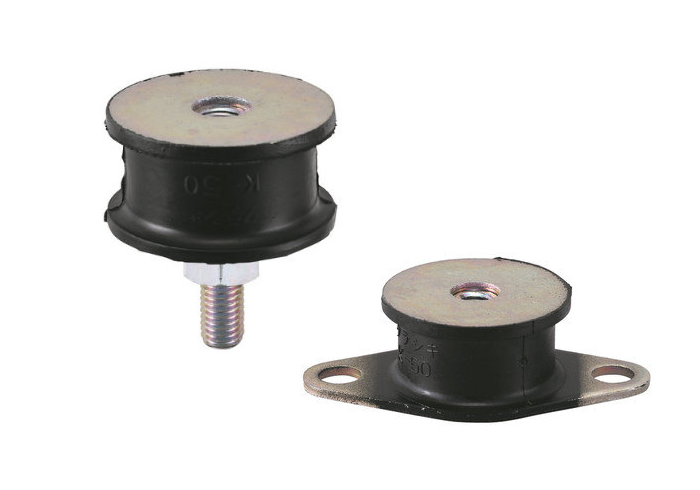

日本原装进口仓敷化工橡胶弹簧型号：RA-30-26H

苏州上野机电设备有限公司销售电话：178-9504-6997 刘经理微信同号

产品特色

1. 结构简单

结构简单，容易安装

2.安装空间小

因为一侧为螺母崁入，能缩小安装固定的空间。

3.各式各样的支撑方法

安装方向，除了压缩方向，切线方向以外，倾斜方向也能使用，具有广泛的应用性。

4.可客制化订购

订购数量多的话，还能依客户需求改变橡胶硬度、材质。

主要用途：帮浦、送风机、引擎、发电机、电动机、压缩机……等。

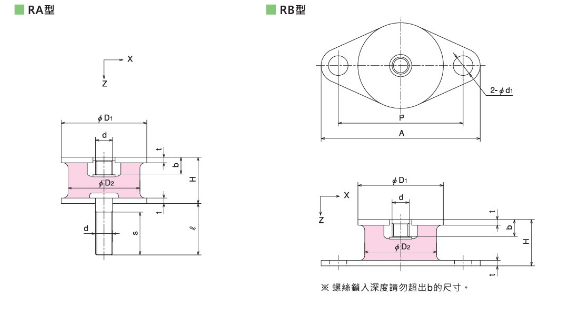

型　號	標　準　尺　寸　　mm
型　號	D1	D2	H	t	d	l	s	b	A	P	d1
RA-8	8	8	11	1	M 3	10	9	3.3
RA-10	10	10	13	1	M 4	10	9	4
RA-12	12	10	16	2	M 5	12	11	4.5
RA-15	15	12	15	2	M 5	15	12	4.5
RA(RB)-20	20	15	15	2	M 6	15	13	5	49	36	7
RA(RB)-20-20H	20	15	20	2	M 6	15	13	5	49	36	7
RA(RB)-25	25	20	18	2.3	M 6	18	16	6	56	42	7
RA(RB)-25-27H	25	20	27	2.3	M 6	18	16	6	56	42	7
RA(RB)-30	30	25	18	2.3	M 8	24	20	7.2	62	48	7
RA(RB)-30-26H	30	25	26	2.3	M 8	24	20	7.2	62	48	7
RA(RB)-35	35	30	26	2.3	M 8	24	20	7.2	69	53	9
RA(RB)-35-35H	35	30	35	2.3	M 8	24	20	7.2	69	53	9
RA(RB)-40	40	34	25	2.3	M 8	30	25	7.2	76	60	9
RA(RB)-40-33H	40	34	33	2.3	M 8	30	25	7.2	76	60	9
RA(RB)-45	45	38	34	3.2	M 8	29	25	8.1	78	63	9
RA(RB)-45-45H	45	38	45	3.2	M 8	29	25	8.1	78	63	9
RA(RB)-50	50	42	27	3.2	M10	30	25	9.2	93	73	11.5
RA(RB)-50-40H	50	42	40	3.2	M10	30	25	9.2	93	73	11.5
RA(RB)-55	55	47	40	3.2	M10	35	30	9.2	98	78	11.5
RA(RB)-55-54H	55	47	54	3.2	M10	35	30	9.2	98	78	11.5
RA(RB)-60	60	52	30	3.2	M12	35	35	11.2	104	84	11.5
RA(RB)-60-34H	60	52	34	3.2	M12	35	35	11.2	104	84	11.5
RA(RB)-60-58H	60	52	58	3.2	M12	35	35	11.2	104	84	11.5
RA(RB)-65	65	56	34	3.2	M12	35	35	11.2	116	92	11.5
RA(RB)-65-50H	65	56	50	3.2	M12	35	35	11.2	116	92	11.5
RA(RB)-75	75	65	42	4.5	M12	45	45	12.5	126	102	11.5
RA(RB)-75-63H	75	65	63	4.5	M12	45	45	12.5	126	102	11.5
RA(RB)-80	80	70	40	4.5	M12	45	45	12.5	136	108	13.5
RA(RB)-80-55H	80	70	55	4.5	M12	45	45	12.5	136	108	13.5
RA(RB)-90	90	80	50	4.5	M12	45	45	12.5	141	117	13.5
RA(RB)-90-76H	90	80	76	4.5	M12	45	45	12.5	141	117	13.5
RA(RB)-100	100	90	50	4.5	M16	55	55	16	166	134	13.5
RA(RB)-100-70H	100	90	70	4.5	M16	55	55	16	166	134	13.5
RA(RB)-120	120	110	60	8	M16	51	51	19.5	210	160	18
RA(RB)-150	150	140	62	8	M20	57	57	22.5	250	190	22
RA型附上六角螺帽、彈簧墊圈各1個。

苏州上野机电设备有限公司销售型号：

CA1	UENO	RA-8	RA-8	RA-8
CA2		RA-10	RA-10	RA-10
CA3	UENO	RA-12	RA-12	RA-12
CA4		RA-15	RA-15	RA-15
CA5	UENO	RA(RB)-20	RA(RB)-20	RA(RB)-20
CA6		RA(RB)-20-20H	RA(RB)-20-20H	RA(RB)-20-20H
CA7	UENO	RA(RB)-25	RA(RB)-25	RA(RB)-25
CA8		RA(RB)-25-27H	RA(RB)-25-27H	RA(RB)-25-27H
CA9	UENO	RA(RB)-30	RA(RB)-30	RA(RB)-30
CA10		RA(RB)-30-26H	RA(RB)-30-26H	RA(RB)-30-26H
CA11	UENO	RA(RB)-35	RA(RB)-35	RA(RB)-35
CA12		RA(RB)-35-35H	RA(RB)-35-35H	RA(RB)-35-35H
CA13	UENO	RA(RB)-40	RA(RB)-40	RA(RB)-40
CA14		RA(RB)-40-33H	RA(RB)-40-33H	RA(RB)-40-33H
CA15	UENO	RA(RB)-45	RA(RB)-45	RA(RB)-45
CA16		RA(RB)-45-45H	RA(RB)-45-45H	RA(RB)-45-45H
CA17	UENO	RA(RB)-50	RA(RB)-50	RA(RB)-50
CA18		RA(RB -50-40H	RA(RB -50-40H	RA(RB -50-40H
CA19	UENO	RA(RB)-55	RA(RB)-55	RA(RB)-55
CA20		RA(RB)-55-54H	RA(RB)-55-54H	RA(RB)-55-54H
CA21	UENO	RA(RB)-60	RA(RB)-60	RA(RB)-60
CA22		RA(RB)-60-34H	RA(RB)-60-34H	RA(RB)-60-34H
CA23	UENO	RA(RB)-60-58H	RA(RB)-60-58H	RA(RB)-60-58H
CA24		RA(RB)-65	RA(RB)-65	RA(RB)-65
CA25	UENO	RA(RB)-65-50H	RA(RB)-65-50H	RA(RB)-65-50H
CA26		RA(RB)-75	RA(RB)-75	RA(RB)-75
CA27	UENO	RA(RB)-75-63H	RA(RB)-75-63H	RA(RB)-75-63H
CA28		RA(RB)-80	RA(RB)-80	RA(RB)-80
CA29	UENO	RA(RB)-80-55H	RA(RB)-80-55H	RA(RB)-80-55H
CA30		RA(RB)-90	RA(RB)-90	RA(RB)-90
CA31	UENO	RA(RB)-90-76H	RA(RB)-90-76H	RA(RB)-90-76H
CA32		RA(RB)-100	RA(RB)-100	RA(RB)-100
CA33	UENO	RA(RB)-100-70H	RA(RB)-100-70H	RA(RB)-100-70H
CA34		RA(RB)-120	RA(RB)-120	RA(RB)-120
CA35	UENO	RA(RB)-150	RA(RB)-150	RA(RB)-150
